Are ceiling gaps a sign of foundation movement?

Often, yes. When a gap is paired with sticking doors, sloping floors, or diagonal cracks at door corners, the pattern points to uneven foundation settlement. A gap on its own, with no other symptoms, may be seasonal and harmless. The way to know is to look at the whole structure, not just the joint, which is exactly what our inspection does.

How do I fix ceiling separation cracks?

If the cause is foundation movement, patching the crack alone will not last because the structure keeps shifting. The lasting fix is to stabilize the foundation underneath with piers, so the movement stops. Our goal is permanent stabilization. Some lift may be possible depending on conditions, but it is never promised. Once the foundation holds, the cracks can be patched and stay closed.

Foundation Repair · Problem Signs · Since 1994

When the Ceiling Pulls Away From the Wall.

A crack or gap where the wall meets the ceiling. This means part of the structure is moving differently than the rest. The separation usually traces back to foundation movement below.

Let's take the first step toward a healthy home.

A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate. no cost, no pressure.

Book instantly with Driive

BBB Accredited

Fully Insured

"By Your Side" Guarantee

What this symptom means

Ceiling Gaps: diagnosed and explained.

A gap between the wall and ceiling forms when two parts of your home shift in different directions. The wall is anchored to the floor framing below, and the ceiling is tied to the roof framing above. When a foundation settles unevenly, or soil heaves and lifts one area, the framing twists and a separation opens at the joint. In Nebraska, Iowa, Kansas, and Missouri, the usual driver is soil that moves with moisture. Expansive clay and loess swell after spring rain and snowmelt, then shrink in dry summers, and the cycle drags the structure with it. Freeze-thaw action, 50 to 70 cycles a year in eastern Nebraska and western Iowa, adds to the movement. A hairline cosmetic crack at a ceiling line can come from normal seasonal change. The threshold that matters is a gap you can fit a coin into, a gap that keeps widening, or one paired with sticking doors and cracks elsewhere. That pattern points to active foundation movement, not just settled paint. Addressing the cause early, rather than caulking the gap, keeps the movement from spreading to floors, walls, and the roofline.

Ceiling Gaps diagnosed by Epp Foundation Repair

Catch It Early

Watch for these warning signs alongside ceiling gaps.

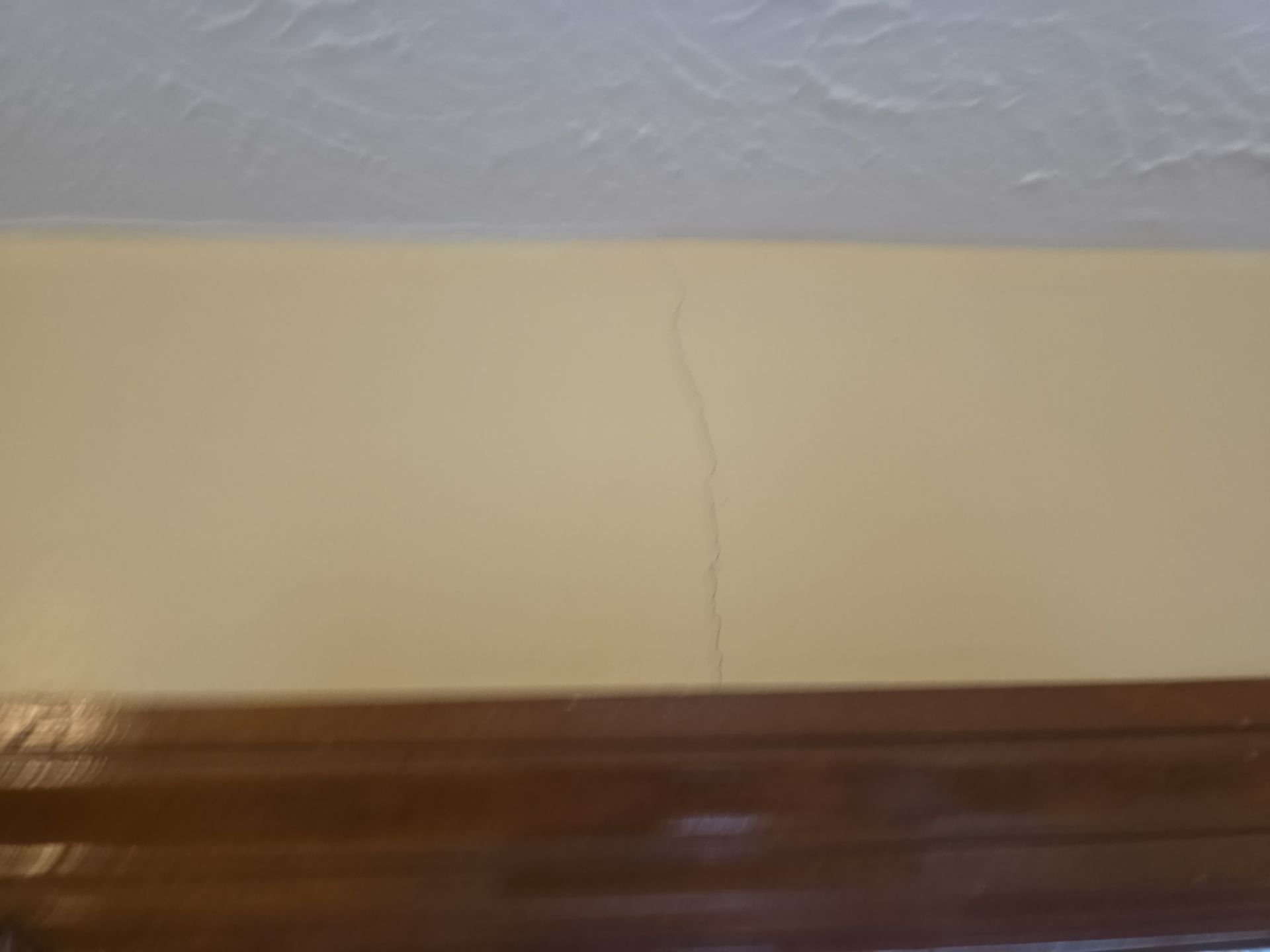

Early warning signs of ceiling gaps on a Midwest home

Diagonal cracks running from door and window corners

These cracks track the same structural movement that opens the ceiling gap.

Doors and windows that stick or no longer latch

Frames pulling out of square show the structure is shifting.

Floors that slope or feel uneven

Sloping floors point to settlement in the foundation below.

The gap is wider at one end of the wall

A tapering gap shows one side of the structure is dropping faster.

Cracks reopening after you patch them

Repairs that crack again mean the underlying movement has not stopped.

Visible cracks in the basement foundation wall

Cracks below connect the ceiling gap to its real source in the foundation.

Most Common Causes

What causes ceiling gaps in Midwest homes.

Uneven Foundation Settlement

When one section of footing sinks into soft clay or loess soil, the walls tied to it drop while the roof framing holds position. The ceiling then pulls away at the joint. This uneven movement is the most common cause we find in our region.

Soil Heave From Moisture Swings

Expansive clay swells when it absorbs water after heavy rain or snowmelt. The swelling can lift part of a foundation, pushing walls up against a roof that has not moved. Nebraska and Iowa homes see this cycle every wet-to-dry season.

Truss Uplift in Cold Weather

In some homes the roof trusses arch upward in winter as attic humidity and temperature change, opening a seasonal gap at interior walls. This type is not a foundation problem, and a careful inspection tells the difference so you do not pay for the wrong fix.

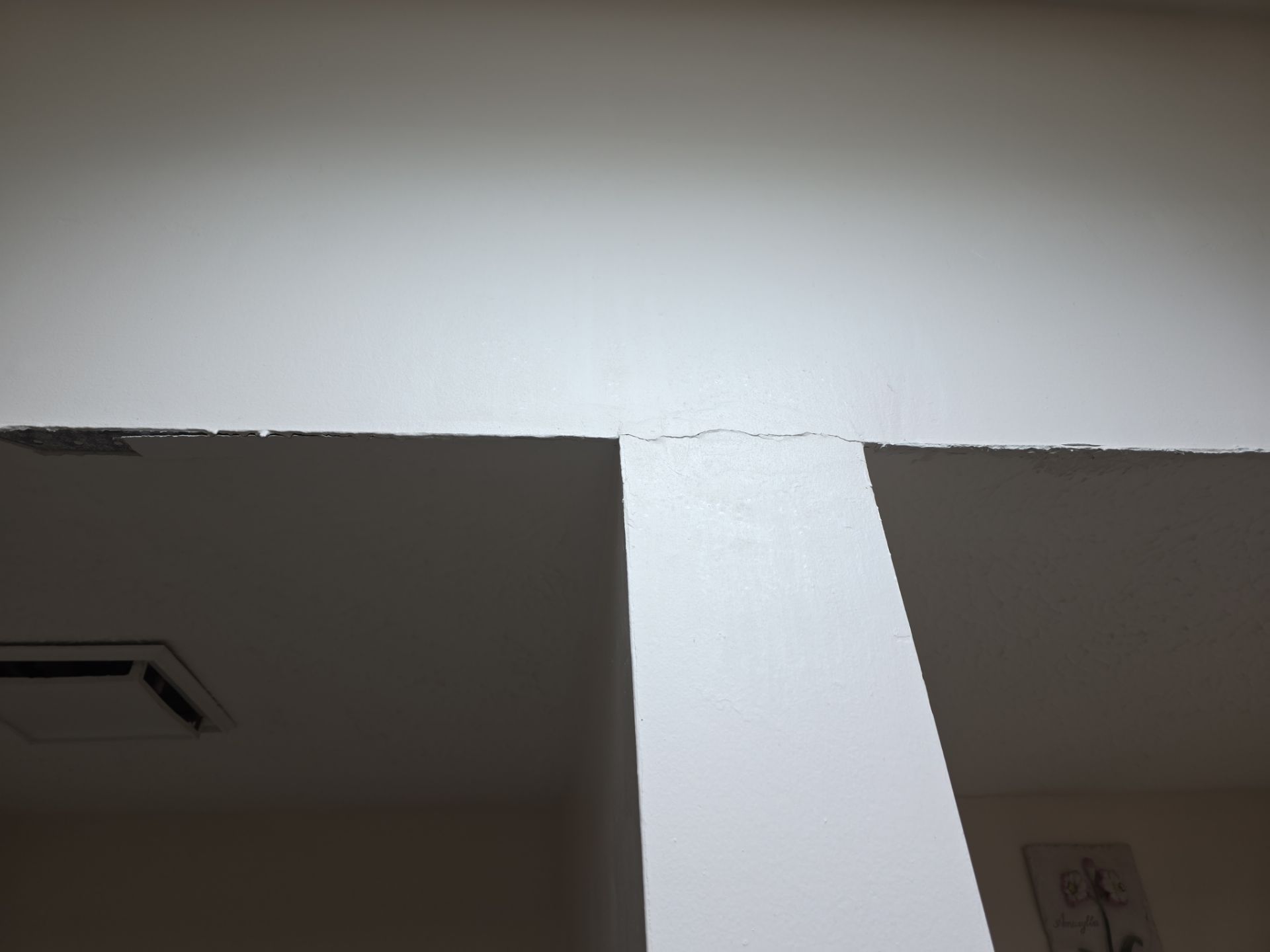

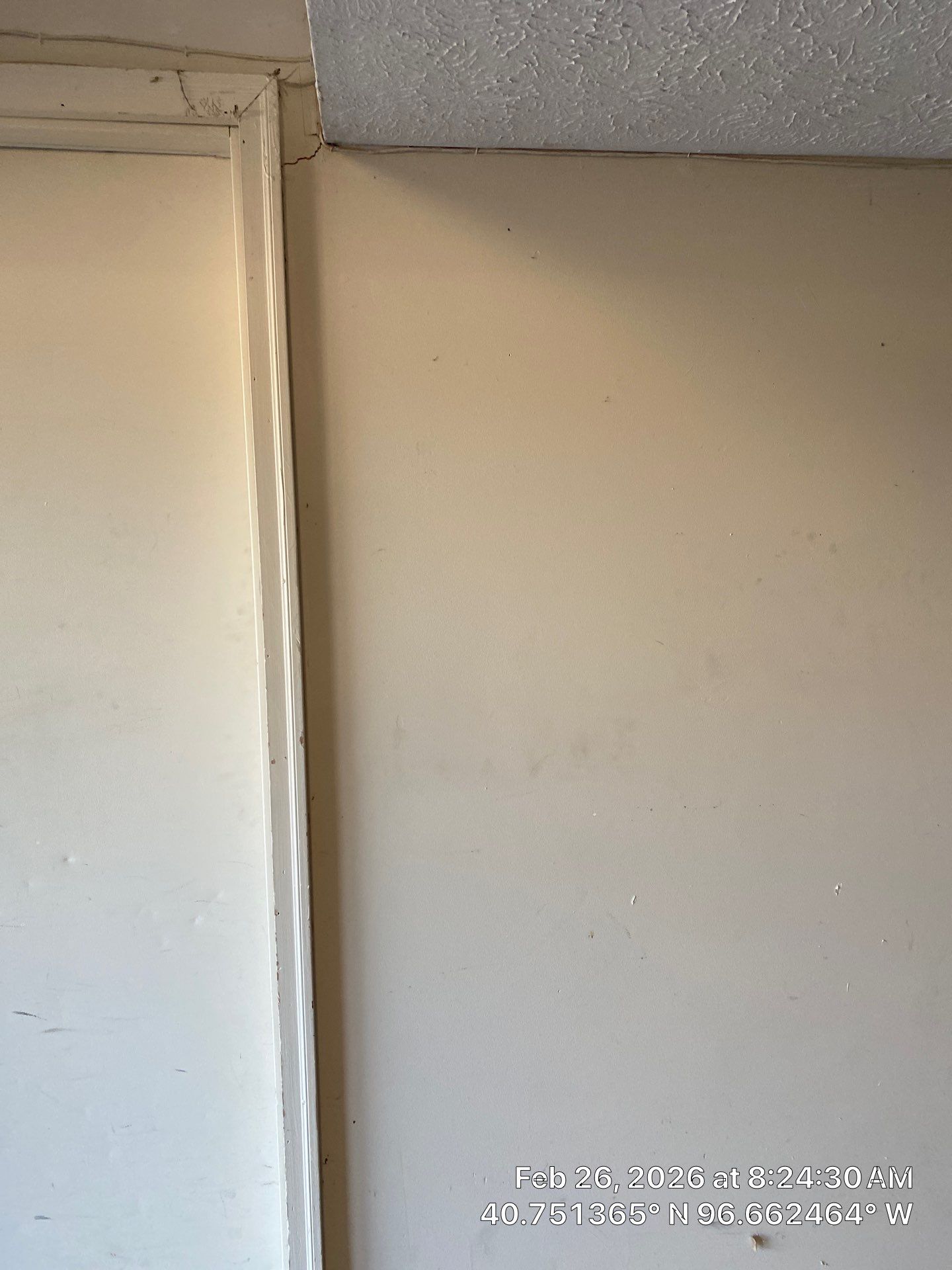

Underlying cause of ceiling gaps in Midwest homes

Permanent Solutions

How foundation repair specialists actually fix ceiling gaps.

Solving ceiling gaps means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.

Foundation Repair solutions

Engineered foundation repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Carbon Fiber Reinforcement

Epp Foundation Repair has reinforced bowed walls across Nebraska, Iowa, Kansas, and Missouri since 1994. No interior steel, no excavation, no lost basement space.

Deep Foundation Systems

Epp Foundation Repair has stabilized settling structures across Nebraska, Iowa, Kansas, and Missouri since 1994 by carrying the load past weak surface soil to firm ground below. Stop the settlement, then attempt to recover what you can.

Epoxy Crack Injection

Epp Foundation Repair has injected foundation cracks across Nebraska, Iowa, Kansas, and Missouri since 1994, and uses sequential polyurethane plus epoxy when one alone won't hold.

Expansion Joints

Epp Foundation Repair has placed and resealed expansion joints across Nebraska, Iowa, Kansas, and Missouri since 1994. A good joint gives concrete room to move so it cracks where you want it to, not where you don't.

Foundation Underpinning

Epp Foundation Repair has driven engineered piers through Nebraska loess and Kansas clay since 1994. Helical, push, and slab piers, matched to the soil and the structure.

Helical Deck Piers

Epp Foundation Repair has set helical deck piers across Nebraska, Iowa, Kansas, and Missouri since 1994. Steel screwed into firm ground holds a deck level through every freeze-thaw season.

Regional Context

Why foundation movement in Nebraska and Iowa needs a regional diagnosis

Loess soils across eastern Nebraska and western Iowa lose strength when wet. Expansive clay across northeast Kansas and northwest Missouri swells and shrinks with the seasons. Foundation movement here behaves differently than in states with stable bearing soil, which is why our diagnosis starts with the soil under the home, not just the crack on the wall.

36 to 42"

Frost penetration depth

Eastern Nebraska average

60 to 80

Freeze-thaw cycles / year

Lincoln to Omaha corridor

35 to 40"

Annual precipitation

NE / IA service region

30+

Years of regional inspections

30,000+ homes assessed

Loess soils and the crack patterns they produce

Most of eastern Nebraska and western Iowa sits on wind-deposited loess. a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts. pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.

The Marshall and Sharpsburg loess series. dominant across the eastern Nebraska service area. are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.

Frost depth, freeze-thaw cycles, and horizontal cracking

Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.

In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode . consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.

"“Ceiling Gaps is the kind of symptom homeowners hope will sort itself out. It doesn't. We see this every week. Catch it early and the fix is small.”. Dave Epp"

Dave Epp

President, Epp Foundation Repair

Why Choose Epp

Care and expertise from a team that's been doing this since 1994.

Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned since 1994.

Three decades of experience with Midwest soils, basements, and weather conditions.

BBB Integrity Award winner.

Recognized in 2011 and 2016 for ethical business practices and customer transparency.

Warrantied solutions.

Most product solutions carry 10 to 25-year warranties backed by the original installer.

EPP · SINCE 1994

Why hire Epp Foundation Repair.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Ceiling Gaps.

Don't see your question here? Our team is happy to help. Reach out anytime.

The gap opens when the wall and the ceiling move in different directions. Usually that is because the foundation under the wall has settled or heaved, while the roof framing stays put. Soil that swells and shrinks with moisture is the typical cause in Nebraska and Iowa. In a smaller number of cases it is seasonal truss uplift, which is not a foundation issue. A free inspection identifies which one you are dealing with.

When the gap is caused by foundation settlement, stabilizing the foundation stops the movement that opens it. In some cases controlled lift during the repair partially closes the gap, but lift depends on soil and conditions and is never guaranteed. After the structure is stable, cosmetic repair of the gap holds because the cause has been addressed. If the gap turns out to be truss uplift, foundation work is not the answer, and we will tell you so.

There is no flat price, because cost depends on how much of the foundation is moving and what it takes to stabilize it. A single settled corner needing a couple of piers is far less than widespread settlement requiring many. The cosmetic repair afterward is minor by comparison. We will not quote until we see it. A written estimate after an on-site inspection reflects your scope. Schedule a free foundation inspection today.

Pricing ranges above are general estimates only and are not project quotes. A precise figure is provided on each written estimate after on-site inspection.
