Exterior Concrete Cracks Diagnosed, Sealed, and Lifted Back to Grade

Epp Foundation Repair has read concrete cracks across Nebraska, Iowa, Kansas, and Missouri since 1994. Most exterior cracks signal a soil problem, not a concrete problem.

Let's take the first step toward a healthy home.

A local specialist will inspect your foundation, walk you through the findings, and send a clear estimate. no cost, no pressure.

Book instantly with Driive

BBB Accredited

Fully Insured

"By Your Side" Guarantee

What this symptom means

Concrete Cracks Diagnosed and Repaired: diagnosed and explained.

Epp Foundation Repair diagnoses exterior concrete cracks on driveways, sidewalks, patios, garage floors, and pool decks across a four-state territory covering more than 130,000 square miles. Dave Epp founded the company in 1994, and after 30-plus years reading slabs, the field rule holds: roughly 70 percent of widening exterior cracks trace back to subgrade movement, not the concrete itself. A hairline crack 1/16 inch wide that has not moved in two years is almost always shrinkage from the original cure. A 1/4-inch crack with one side dropped lower than the other is a settlement signal, and the slab is telling you the dirt under it is gone or going.

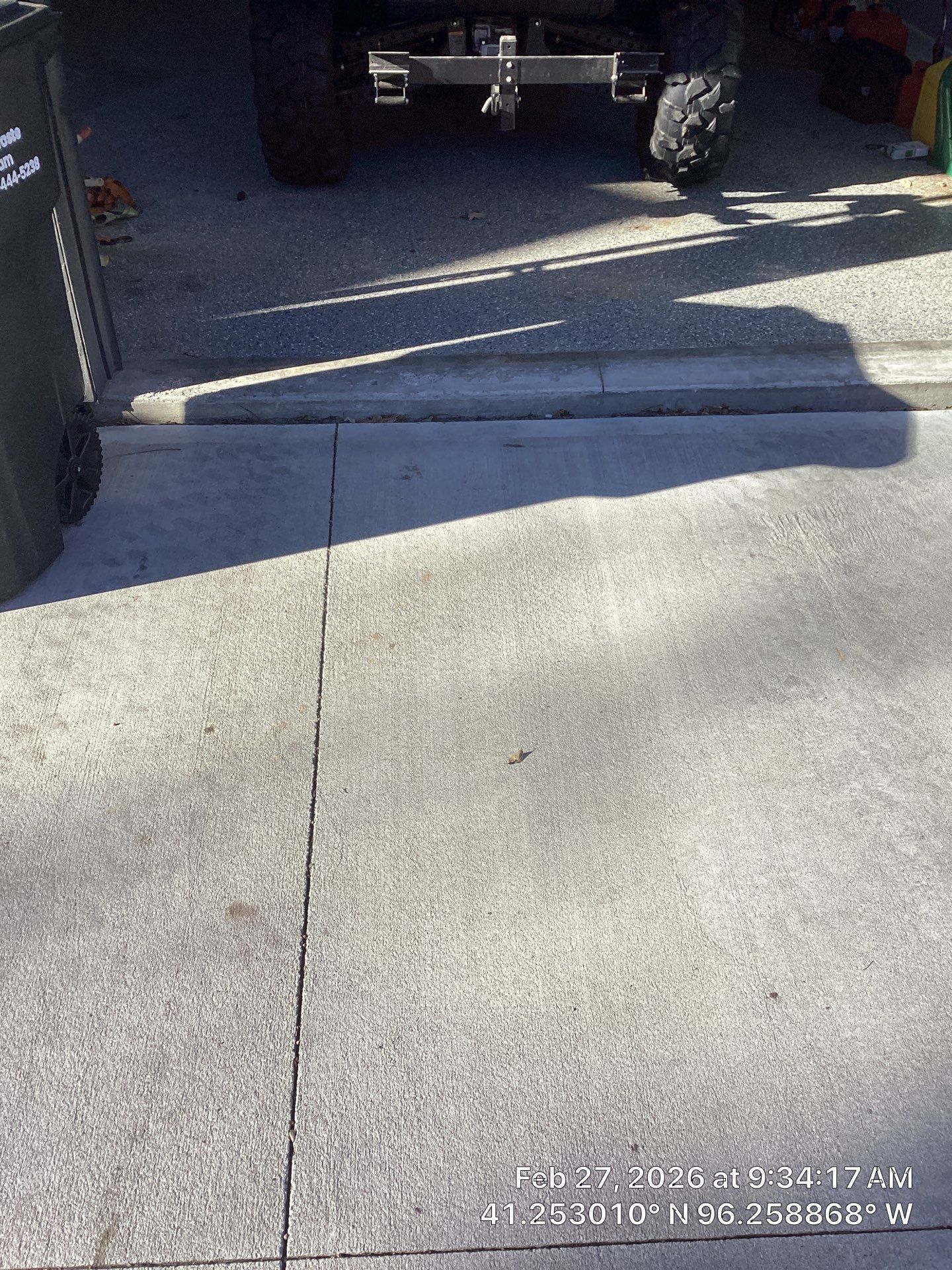

Concrete Cracks Diagnosed and Repaired diagnosed by Epp Foundation Repair

Catch It Early

What to Watch For Before Cracks Get Worse

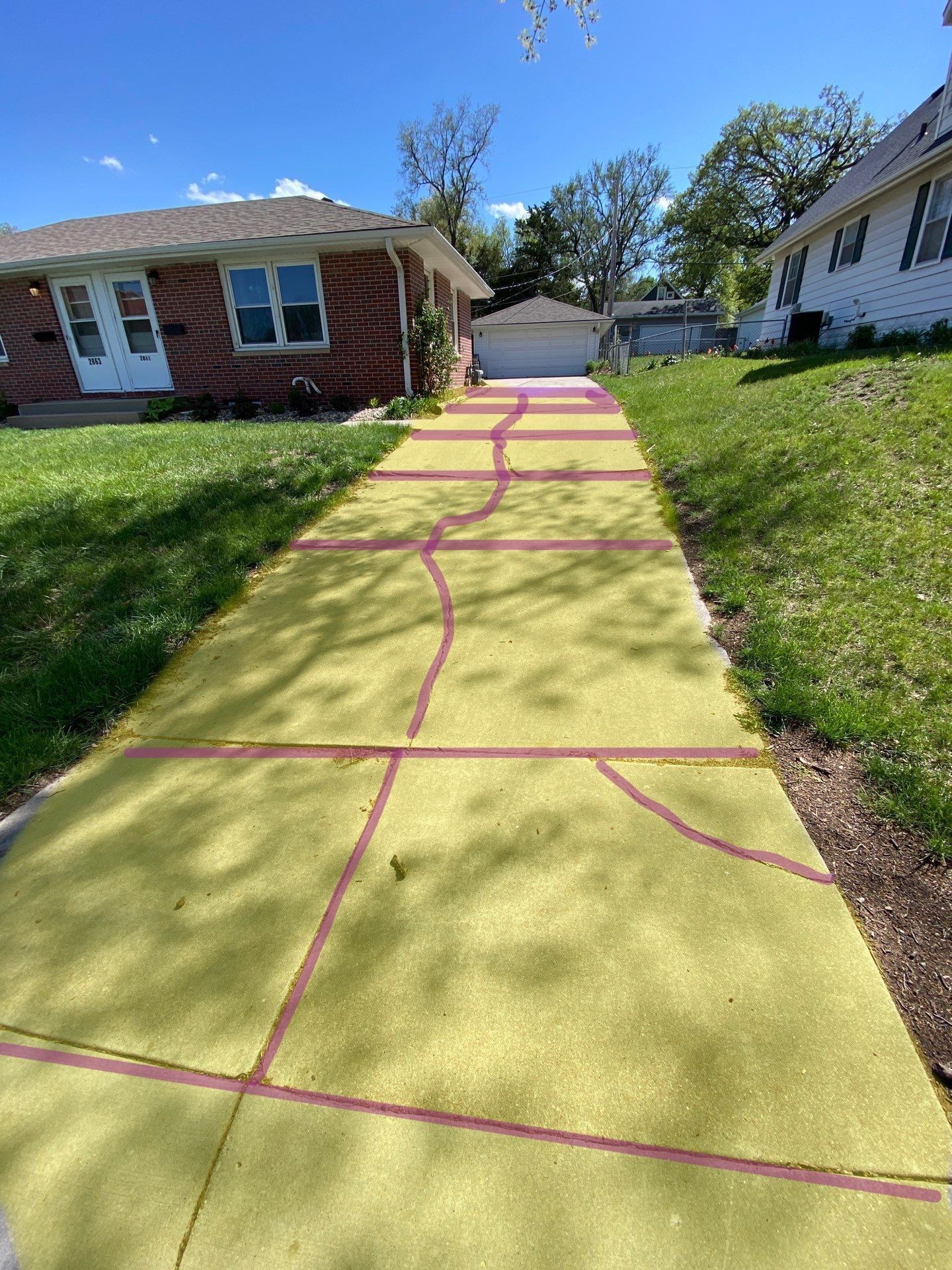

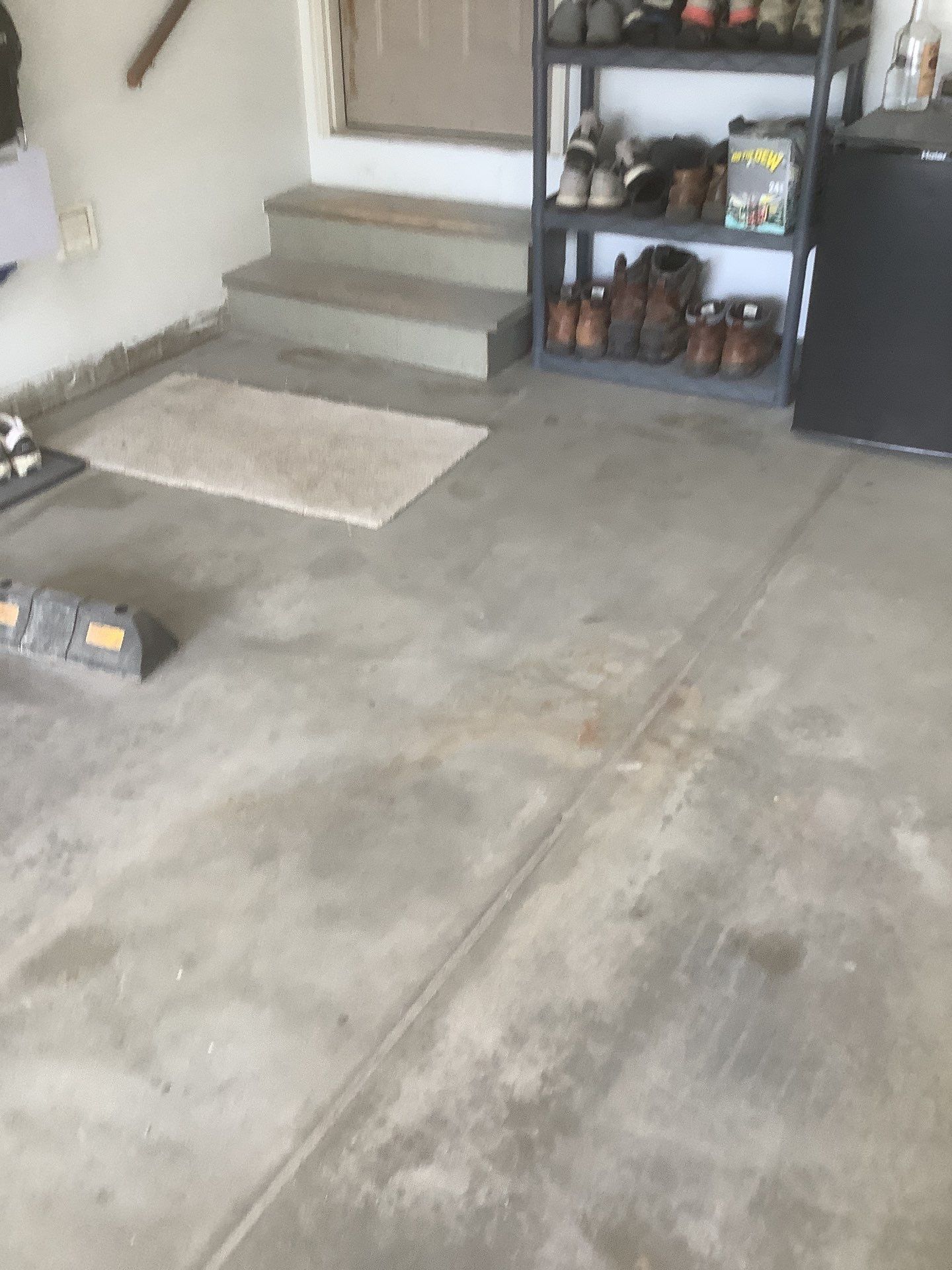

Early warning signs of concrete cracks diagnosed and repaired on a Midwest home

One side of the crack sits lower than the other

A vertical offset of even 1/8 inch means the slab has settled. The soil beneath one side is no longer carrying the load. Sealing this crack without lifting the slab traps the problem and the crack will widen again within 12 months.

The crack is wider at one end than the other

A tapered crack means the slab is rotating, usually because a corner has lost support. Common locations are driveway aprons where downspouts discharge and patio corners next to settling backfill at the foundation wall.

The crack has widened more than 1/16 inch in the last year

Mark the crack ends with a permanent marker and date them. If the crack lengthens or widens between checks, the underlying cause is active and a flexible sealant alone will fail.

Water pools at the crack after rain

A crack that holds water is feeding more water into the subgrade and accelerating the same settlement or freeze damage that caused it. This is the single most common reason Epp Foundation Repair sees cracks double in width between the first and third year.

Most Common Causes

What causes concrete cracks diagnosed and repaired in Midwest homes.

Shrinkage during the original cure

Concrete loses roughly 1/16 inch per 10 feet as it cures over the first 30 to 90 days. Control joints are cut to direct that cracking, but when joints are spaced too far apart or cut too shallow, the slab cracks where it wants to. These hairline shrinkage cracks rarely widen, rarely require lifting, and only need a flexible sealant to keep water out. Epp Foundation Repair leaves stable shrinkage cracks alone unless they are letting water under the slab.

Subgrade settlement under the slab

Across eastern Nebraska and western Iowa, hydroconsolidated loess fill collapses 2 to 6 inches within the first 5 years when water reaches it. In central Kansas and northern Missouri, expansive clay with a plasticity index above 30 shrinks roughly 15 percent by volume during dry summers, leaving voids beneath driveways and patios. The slab bridges the void until a vehicle wheel, a freeze cycle, or its own weight breaks it. Cracks that step or tilt are almost always settlement-driven.

Freeze-thaw heave

Nebraska, Iowa, and northern Missouri average 50 to 110 freeze-thaw cycles per winter. When water reaches subgrade fines and freezes, the soil expands roughly 9 percent and pushes slabs upward. The most common heave pattern Epp Foundation Repair sees is a sidewalk panel tilted 1 to 2 inches higher than its neighbor after a wet fall, then the panel cracks across the middle when traffic loads it.

Tree root pressure

Silver maples, cottonwoods, and Bradford pears push surface roots that lift and crack driveways and sidewalks 8 to 15 feet from the trunk. Once the root is established under a slab, removing the tree does not undo the damage. Epp Foundation Repair cuts the root, lifts the slab back to grade with polyurethane foam, and seals the resulting crack. We do not remove trees.

Salt spalling and surface failure

Winter road salt and homeowner ice melt drive chloride ions into the top 1/4 inch of concrete. Repeated freeze cycles pop the surface off in flakes and pits, and the surface failure often migrates into full-depth cracks at slab edges. Salt damage is concentrated within 4 feet of garage doors, sidewalk edges, and apron joints where snowmelt pools.

Load failure on undersized slab

A standard residential driveway is 4 inches thick on compacted base. When a contractor pour comes in at 3 inches or skips the rebar at the apron-to-garage joint, vehicle loads crack it within 2 to 5 winters. Epp Foundation Repair does not pour replacement concrete, but we can identify whether the failure is the slab itself or the soil under it before you call a flatwork contractor.

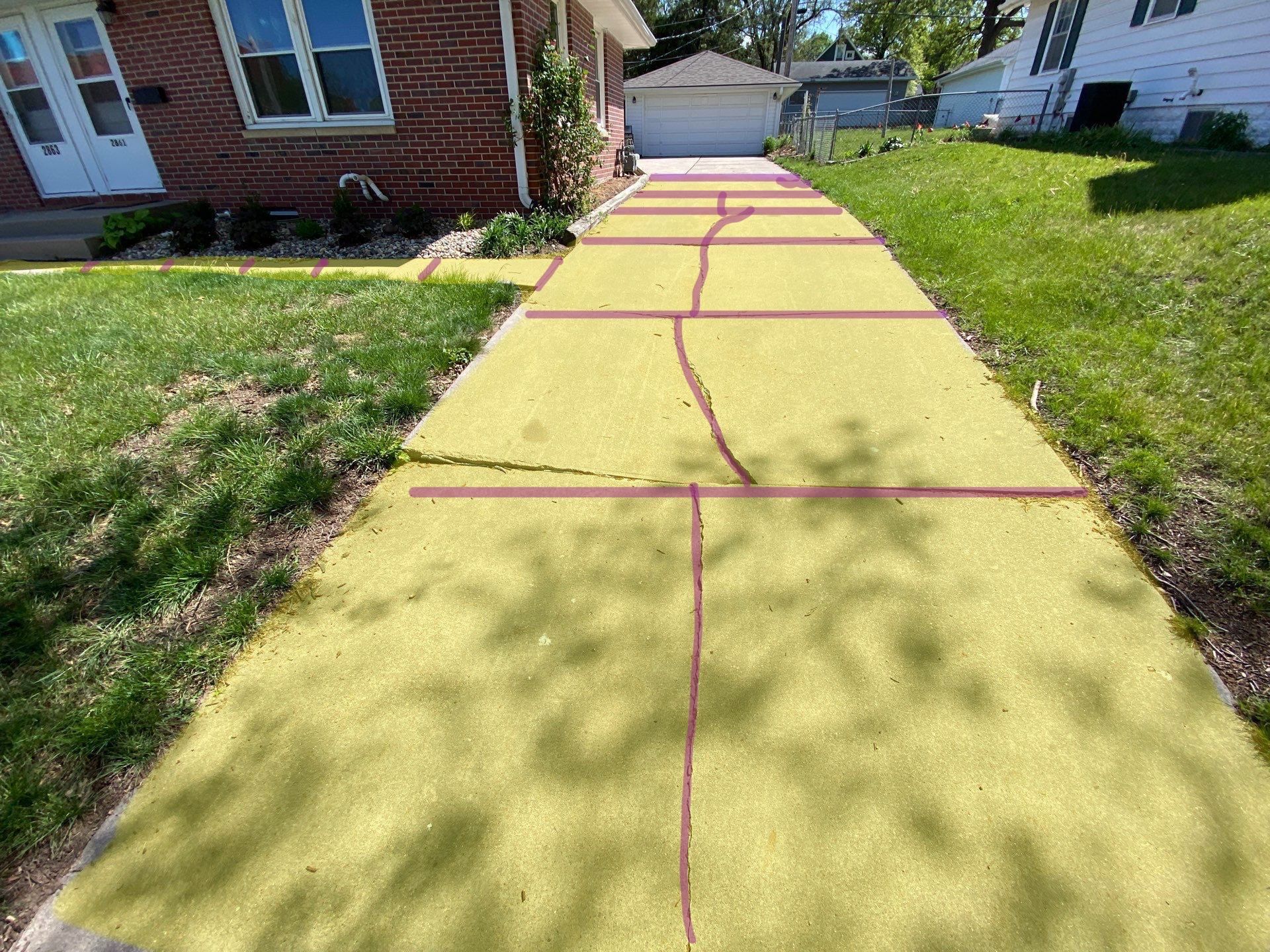

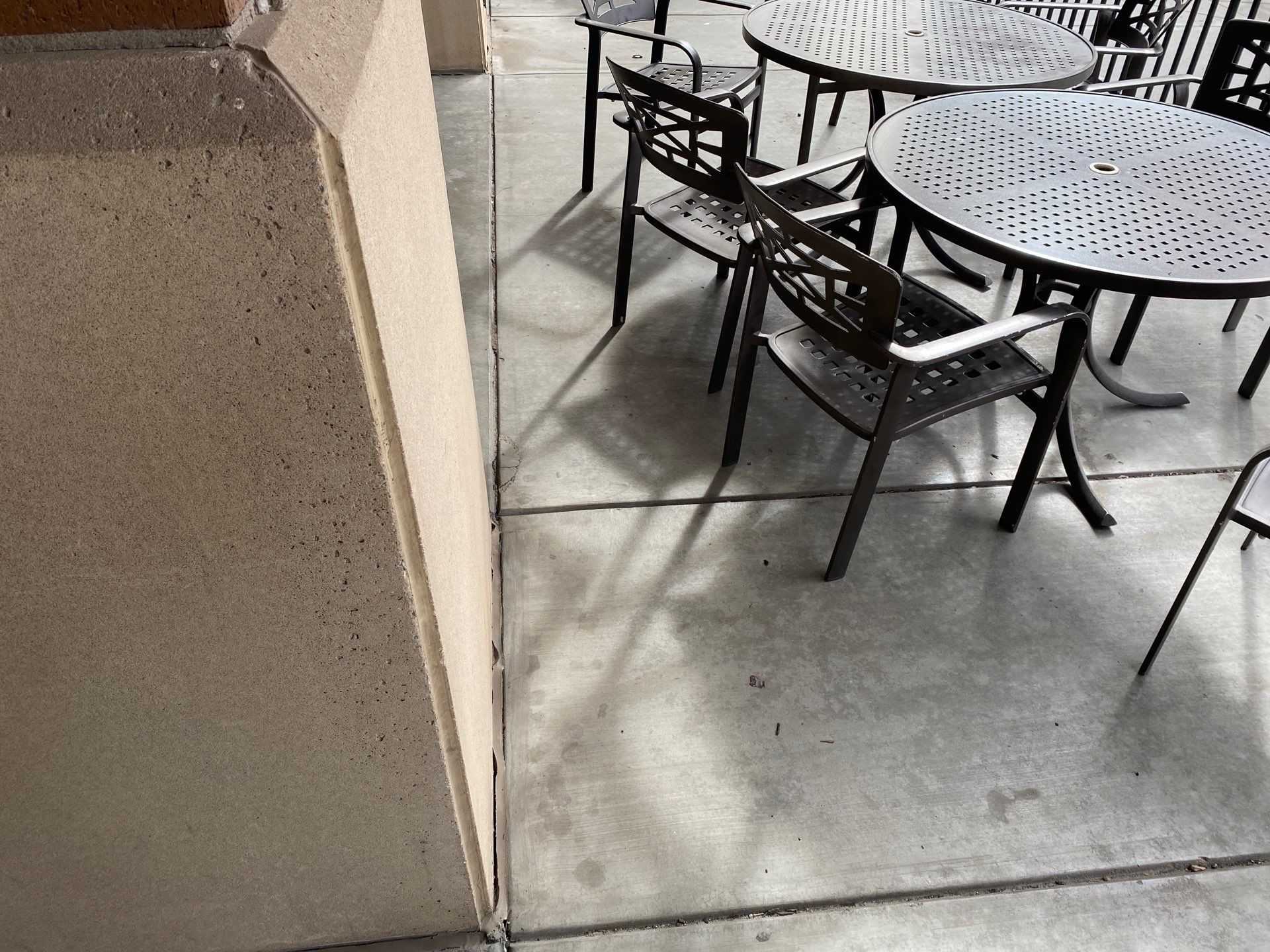

Underlying cause of concrete cracks diagnosed and repaired in Midwest homes

Permanent Solutions

How concrete repair specialists actually fix concrete cracks diagnosed and repaired.

Solving concrete cracks diagnosed and repaired means addressing the underlying soil, pressure, or settlement cause. Not just patching the visible damage. Below are the engineered solutions we install most often for this symptom in Nebraska, Iowa, Kansas, and Missouri homes.

Concrete Repair solutions

Engineered concrete repair solutions for this problem.

Each method is matched to a specific failure mode and soil profile. Browse the toolkit we draw from when diagnosing your home.

Concrete Joint & Crack Sealing

Epp Foundation Repair has sealed concrete expansion joints and stable cracks with self-leveling polyurethane across Nebraska, Iowa, Kansas, and Missouri since 1994. Flexible material that handles 50+ freeze-thaw cycles a winter without splitting.

Polyurethane Foam Injection

Epp Foundation Repair has injected closed-cell structural foam beneath driveways, sidewalks, garage floors, and pool decks across Nebraska, Iowa, Kansas, and Missouri since 1994. The slab lifts. The void fills. The work finishes in a single day.

Polyjacking

Epp Foundation Repair has installed polyurethane foam slab lift. Whether the contractor calls it polyjacking, foam jacking, or poly lift. Across Nebraska, Iowa, Kansas, and Missouri since 1994. Same closed-cell foam. Same 5-year warranty.

Regional Context

Why concrete fails differently in Nebraska, Iowa, Kansas, and Missouri

Loess soils consolidate under slabs after the first deep water exposure. Expansive clay heaves and contracts seasonally. Salt damage from 60+ freeze-thaw cycles per winter accelerates surface failure. Generic concrete repair ignores the soil under the slab, which is why settled concrete returns within a season or two. Regional repair starts with the cause underneath, not the crack on top.

36 to 42"

Frost penetration depth

Eastern Nebraska average

60 to 80

Freeze-thaw cycles / year

Lincoln to Omaha corridor

35 to 40"

Annual precipitation

NE / IA service region

30+

Years of regional inspections

30,000+ homes assessed

Loess soils and the crack patterns they produce

Most of eastern Nebraska and western Iowa sits on wind-deposited loess. a fine, silty soil 10 to 200+ feet deep. Loess holds its structure when dry but loses cohesion rapidly when saturated. After a wet spring, saturated loess expands against foundation walls. After a dry Nebraska summer, it contracts. pulling away from footings, creating voids beneath slabs, and producing the vertical and diagonal settlement cracks we see most frequently on the Lincoln, Omaha, Council Bluffs corridor.

The Marshall and Sharpsburg loess series. dominant across the eastern Nebraska service area. are particularly prone to this cyclical volume change. Homes built in the 1960s, 1980s on uncompacted loess backfill show the highest incidence of progressive settlement cracking in our inspection data.

Frost depth, freeze-thaw cycles, and horizontal cracking

Eastern Nebraska's 36, 42" frost penetration depth means the soil below grade freezes and thaws 60, 80 times per year. Each cycle applies lateral pressure to basement walls. A wall that holds through ten cycles can fail in the eleventh if drainage has worsened, backfill has settled, or the wall was already at capacity. Horizontal cracks near the soil grade line are almost always a freeze-thaw story in this region.

In eastern Kansas, expansive clay pockets near the surface introduce a different failure mode . consistent volume change regardless of frost depth. Horizontal cracking in Kansas foundations typically traces to clay expansion; the same pattern in Nebraska more often indicates frost-driven hydrostatic pressure.

"Most exterior concrete cracks aren't a concrete problem. They're a soil problem the concrete is announcing. After 30 years in this work I can usually tell within five minutes whether you need a $200 sealant or a $2,000 lift. The honest answer comes from looking at the slab and the water that gets to it, not from a phone call. Dave Epp, Founder"

Dave Epp

President, Epp Foundation Repair

Why Choose Epp

Care and expertise from a team that's been doing this since 1994.

Epp Foundation Repair is locally owned and operated, with crews dedicated exclusively to foundation, basement, and concrete work across the Midwest.

Specialized expertise.

Foundation repair, waterproofing, and concrete leveling are our entire focus. not a sideline.

Locally owned since 1994.

Three decades of experience with Midwest soils, basements, and weather conditions.

BBB Integrity Award winner.

Recognized in 2011 and 2016 for ethical business practices and customer transparency.

Warrantied solutions.

Most product solutions carry 10 to 25-year warranties backed by the original installer.

EPP · SINCE 1994

Why hire Epp Foundation Repair.

MEET THE TEAM · 2 MIN

Frequently Asked Questions

Answers to common questions about Concrete Cracks Diagnosed and Repaired.

Don't see your question here? Our team is happy to help. Reach out anytime.

It depends on what the crack is telling you. A hairline shrinkage crack 1/16 inch wide with no vertical offset is cosmetic and almost universal in 5-plus year old concrete. A crack with one side dropped lower than the other, or a crack that has widened measurably in the last 12 months, is a settlement signal and will get worse without intervention. Epp Foundation Repair does free on-site inspections and tells you honestly which category your crack falls into. A 10-minute look at the crack often answers the question.

Pricing depends on cause and scope. Crack sealing alone runs $50 to $200 per section. Polyurethane foam lift plus seal runs $300 to $1,500 per area depending on slab size and how much foam the void requires. A two-car driveway with three settled panels and four cracks typically runs $1,200 to $3,500. Pool decks and large patios can reach $5,000 or more. Written estimate after on-site inspection reflects your scope.

No. Epp Foundation Repair is a foundation and concrete-leveling contractor. We diagnose, lift, and seal existing concrete. We do not pour new flatwork and we will tell you on the inspection if your slab is past the point where lifting makes sense. When that happens, we recommend reputable flatwork contractors in your area. Roughly 5 percent of the cracks we look at fall into the replacement-only category.

Yes. Polyurethane foam injection generates roughly 7,000 pounds per square foot of lifting force as it expands, which is more than enough for any residential slab. The foam fills voids beneath the slab and lifts the concrete back to grade within 1/8 inch of original elevation. Reaches structural strength in 15 minutes. Epp Foundation Repair has used polyurethane foam injection across Nebraska, Iowa, Kansas, and Missouri since the early 2000s and the foam outlasts the concrete above it.

Recurring cracks in the same location almost always mean the water source under the slab was never fixed. A downspout discharging at the corner, a sprinkler head spraying the apron, or a low spot in the grade that holds water. Each one keeps feeding the subgrade and re-creating the void the crack rides on. Epp Foundation Repair walks the water before lifting and will not warranty the lift if the homeowner refuses to address the source.

When the water source is fixed and the foam lift is done correctly, Epp Foundation Repair warranties the lift against re-settlement. Polyurethane foam itself does not deteriorate. It is the same material used in marine flotation. The flexible crack sealant carries a 20-plus year manufacturer rating against freeze-thaw failure. Real-world performance across our four-state territory: lifts done in the early 2000s are still holding 20-plus years later when the homeowner kept water away.

Pricing ranges above are general estimates only and are not project quotes. A precise figure is provided on each written estimate after on-site inspection.
